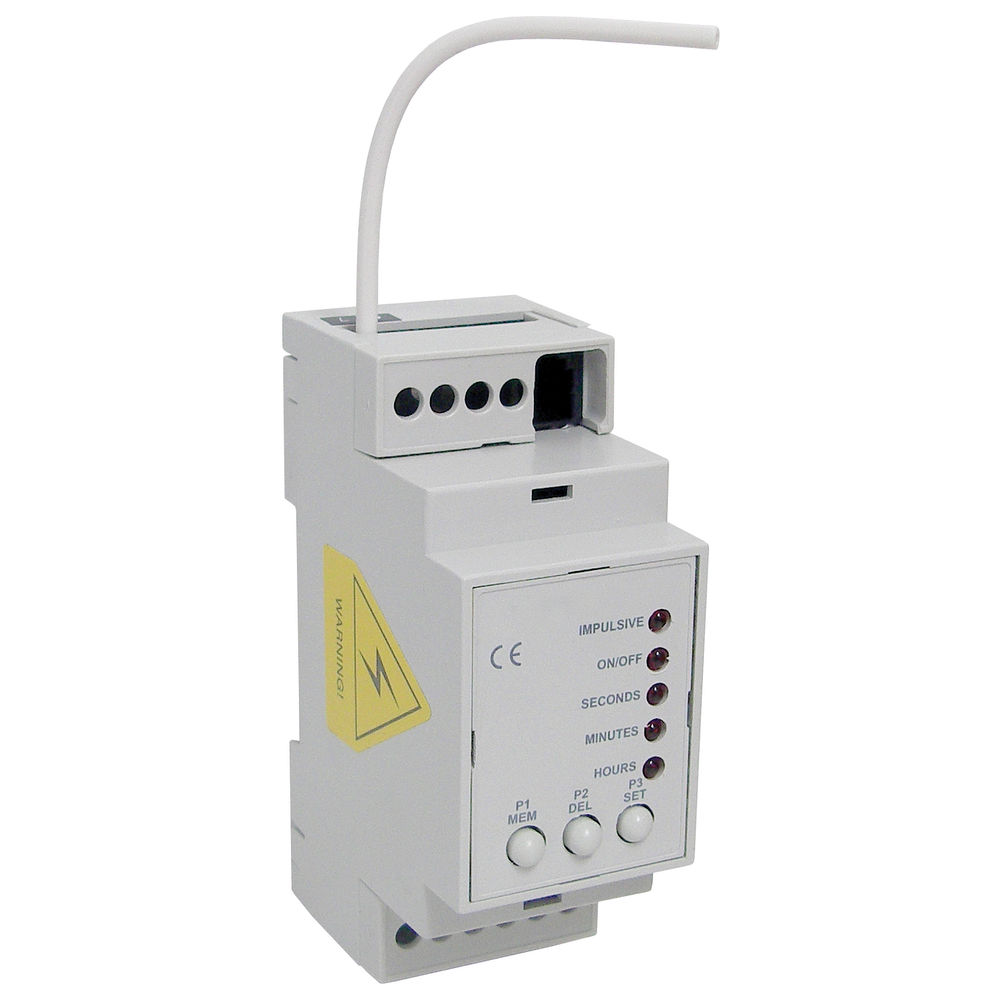

Wise DIN Rail Time Lag 1 Channel 3000W
Product code WISERAIL TIME
£111.24
ex. VAT
The Wise Time Lag is a din rail receiver that has three different functions. The functions are on/off switching, push-to-make switching and timelag switching. The timelag function can be set to work between 1 second and 9 hours. This is very popular when installing lighting for communal hall ways and stair cases. As the switches are all wireless they can be placed anywhere with minimal effort.
Up to 16 switches can be programmed to one pack. This enables you to fit timelag switches without any wiring.
It can be programmed in 3 different ways:
Option A - Single Button Switching ON/OFF
The circuit can be turned ON/OFF from a single button.
Option B - Two Button Switching ON/OFF
The circuit can be turned ON/OFF from two buttons, for independent ON and OFF.
Option C - Mode
Choose from push-to-make, ON/OFF or time delay.
Wise Controls Introduction Video
- Wireless platform — no rewiring between switches and receivers
- Programmed by button-press — no software, hub or app required to set up
- Free installer training and UK technical support from the Wandsworth team
Free training available for installers — book a slot.
Specifications
| Detection Range | 100m |
| Dimensions | |
| Depth | 58mm |
| Height | 90mm |
| Width | 35mm |
| Electrical | |
| Maximum Wattage | 3000W |
| Minimum Wattage per Circuit | 1W |
| Voltage | 240V |
| General | |
| IP Rating | IP20 |
Downloads
Spec sheets
Catalogues
Manuals & instructions
Common questions
Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
