Wise DIN Rail Dim 1 Channel 500W Wise DIN Rail Dim 1 Channel 500W Wise DIN Rail Dim 1 Channel 500W Wise DIN Rail Dim 1 Channel 500W

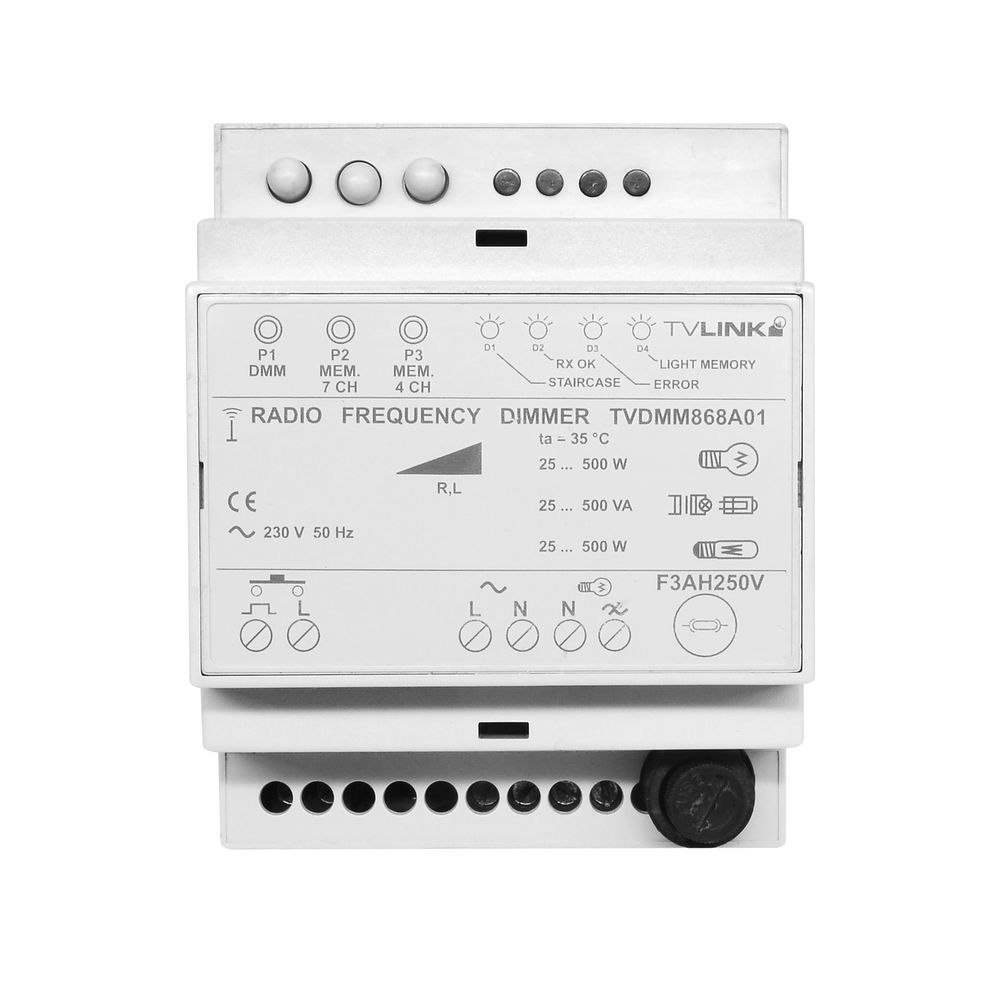

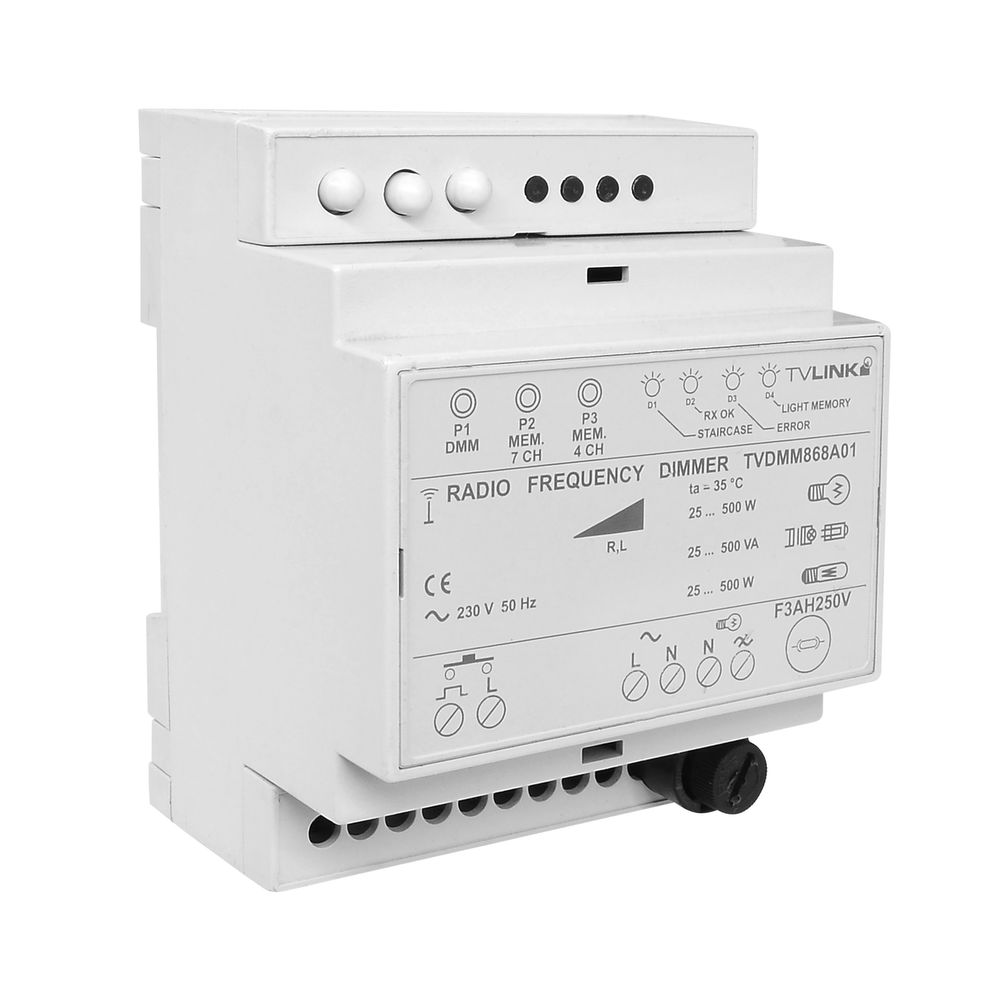

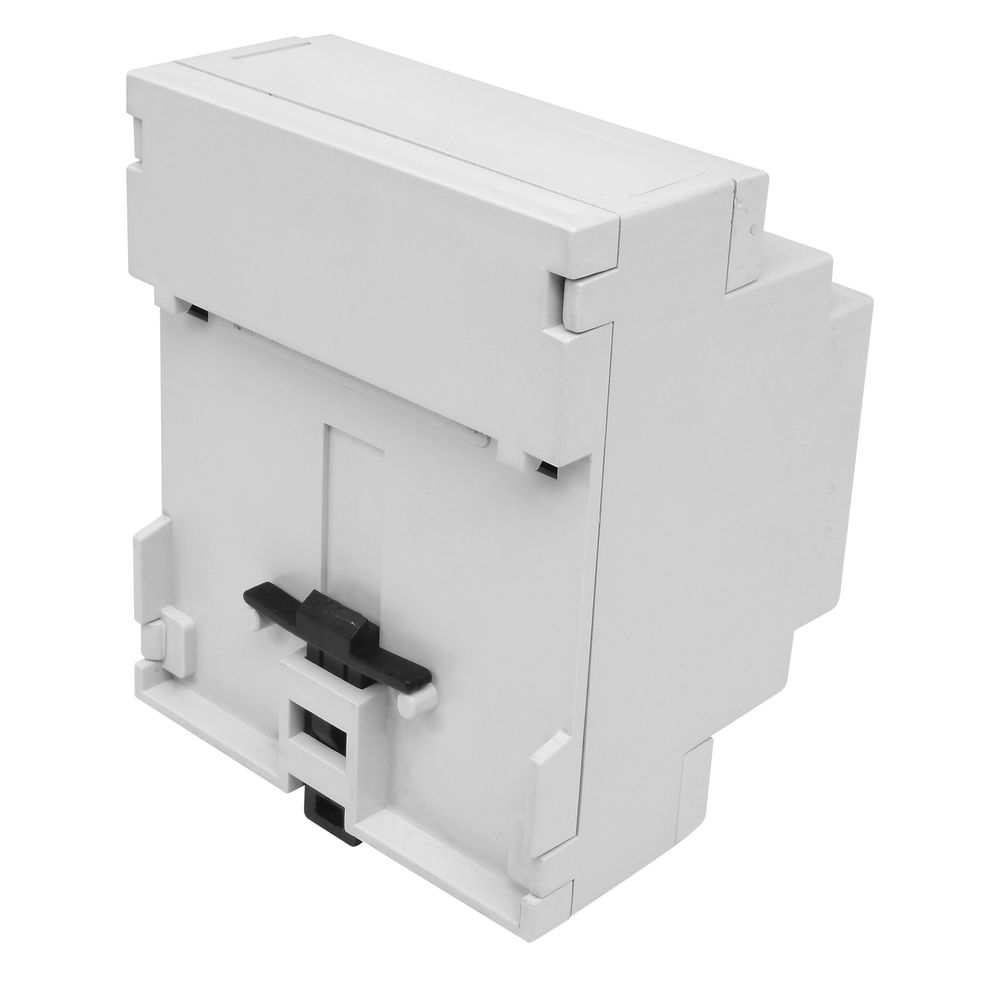

Wise DIN Rail Dim 1 Channel 500W

Product code WISERAIL DIM
£108.18 ex. VAT

The Wise Rail Dim is a dinrail mounted single channel dimming receiver for use with our extensive range of Wise transmitters. The system is 240V and will dim most mains dimmable loads wirelessly up to 500W per channel.

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Radio Frequency 868.3 MHz
Dimensions
Length 90mm
Width 60mm
Electrical
Input Voltage 240V
Maximum Wattage 500W
Minimum Wattage 25W
General
Colour White
Construction Plastic

Downloads

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.

Complete the look

Other products in the Dimming & Scene Setting range that pair with this one.
