Wise Prism Master Control 4 & RS232 Interface 12/24V 5 x 100W
Product code WISERGB/W/W RS232
£359.78
ex. VAT
The Wise Prism Master is a RGBWW or WWWWW dimmer with built-in radio receiver for the control of RGB (red, green, blue) and tunable white controller for 12/24 Vdc LED. It allows adjusting the temperature of the colour, mixing the outputs from cool white to warm white. Ideal for outdoor installations using box IP54. Maximum wattage is 100W for each channel, which is 5 x 100W.
- If controlled with 7-channel wireless transmitter, you can choose from 8 pre-set colours (changeable at any time) or activate the automatic colour cycle
- The RGB and white outputs are controlled independently by transmitter or manually operated pushbuttons
- It is possible to adjust the intensity of the pre-set colours and to save the new value (Light memory)
- Function of gradual light switching on and off (Fade)
- Possibility to memorize up to 42 transmitters

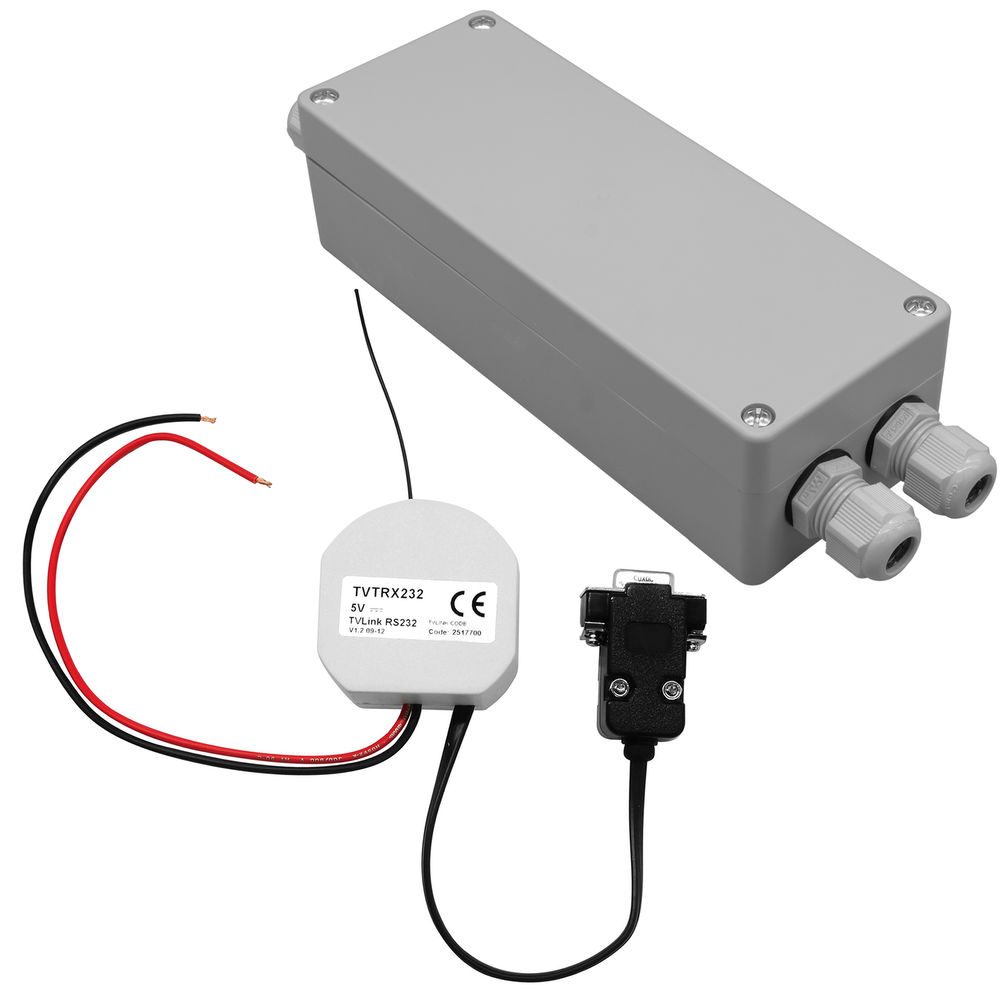

The Wise RS232 Interface is used as a way of communicating between the wise controls system and other AV equipment.
Works with:
- Wise Recievers
- Control 4
- Creston
- Lutron
- Mode
- RTI
Software drivers are available from Janus Technology. Please go to the link below to download them
http://janustechnology.co.uk/product-category/drivers/manufacturer/drivers-manufacturer-wise-controls/- Wireless platform — no rewiring between switches and receivers
- Programmed by button-press — no software, hub or app required to set up
- Free installer training and UK technical support from the Wandsworth team
Free training available for installers — book a slot.
Specifications
| Radio Frequency | 868.3 MHz |
| Range for Metal Switch | 50m Max Line Of Sight |
| Range for Plastic Switch | 100m Max Line Of Sight |
| Dimensions | |
| Height | 51mm |
| Length | 230mm |
| Width | 70mm |
| Electrical | |
| Input Voltage | 12-24V |
| Maximum Wattage | 500W (5 x 100W) |
| Minimum Wattage | 1W |
| Voltage | 24V |
| General | |
| Construction | Plastic |
| IP Rating | IP54 |
Downloads
Spec sheets
Manuals & instructions
Common questions
Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
