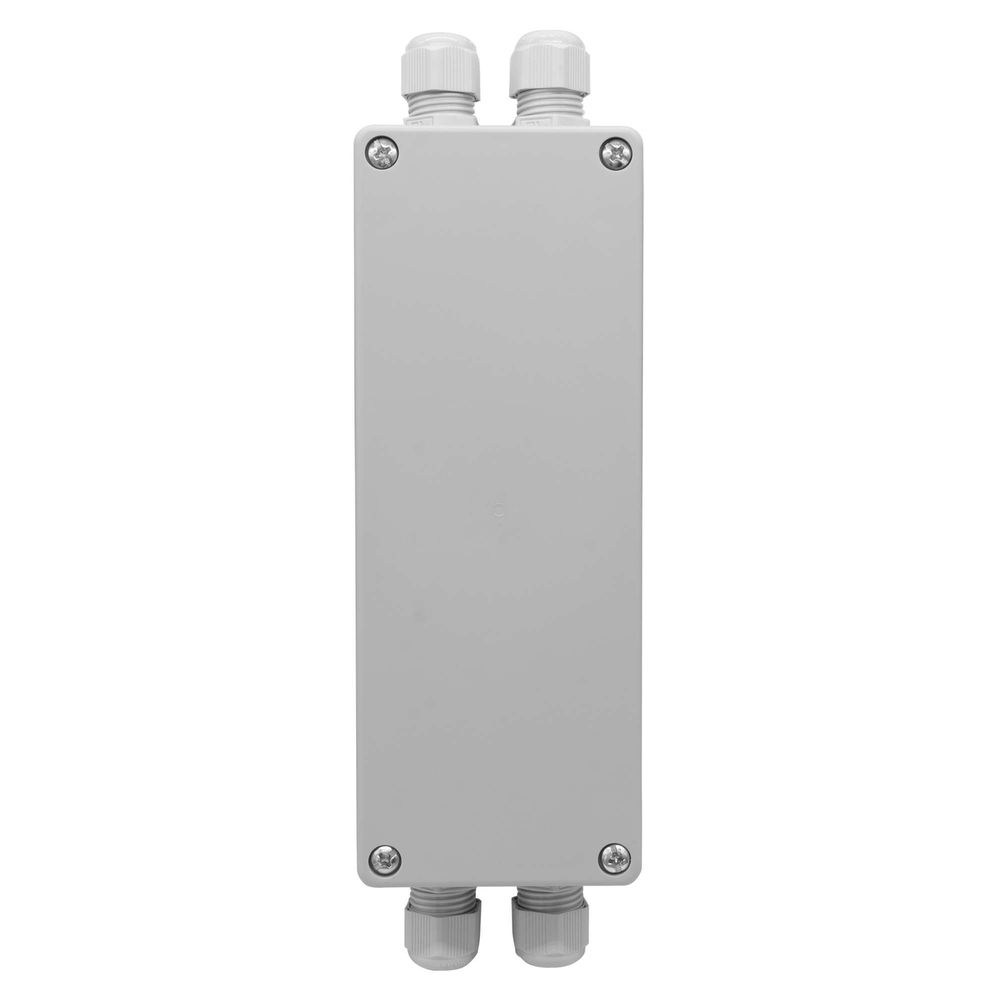

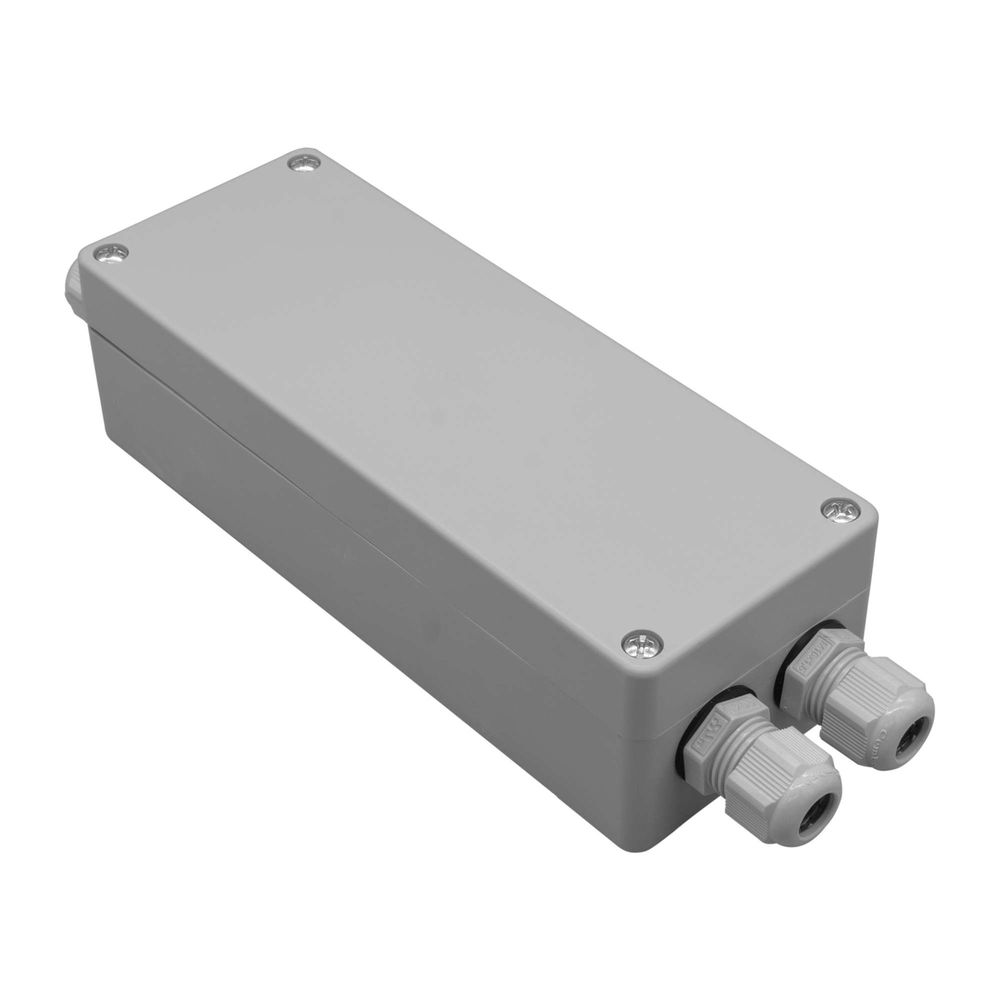

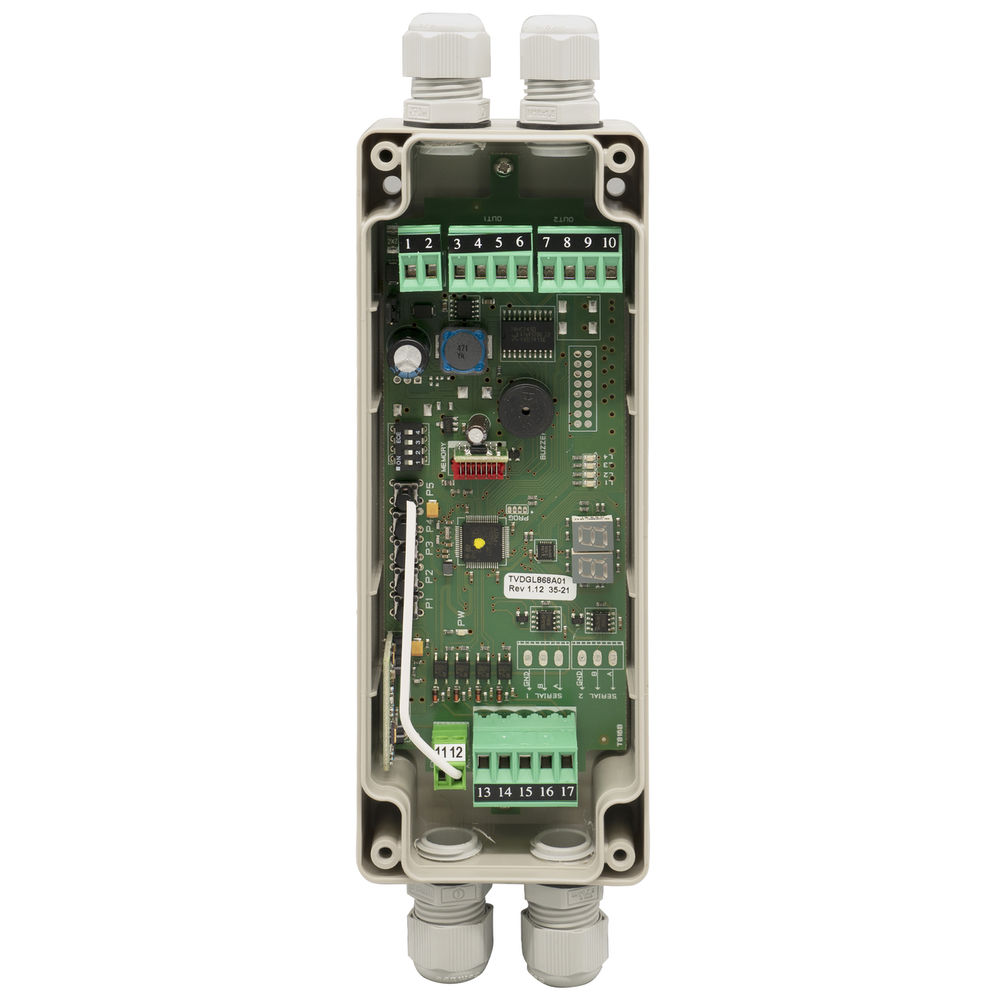

Wise Digital Pixel Tape Box 5V=100W 12V=240W 24V=480W
Product code WISE DIGITAL BOX
£140.08
ex. VAT
The Wise Digital Box is a controller with radio receiver for controlling digital RGB LEDs 5/12/24 Vdc. Ideal for outdoor installations using box IP54.
Independent or synchronized control of outputs
If controlled with a 7-channel wireless transmitter, it is possible to recall 87 pre-set dynamic effects
If controlled by a 7-channel transmitter, it is possible to pre-set 4 dynamic effects
Memorisation function of the last switch-on effect (Light memory)
The intensity of the colours and the speed of the effects can be adjusted
Possibility to memorize up to 27 transmitters
Number of outputs: 2
Chip Type: UCS X903 / SK6813
Product Video Tutorial
- Wireless platform — no rewiring between switches and receivers
- Programmed by button-press — no software, hub or app required to set up
- Free installer training and UK technical support from the Wandsworth team
Free training available for installers — book a slot.
Specifications
| Radio Frequency | 868.3 MHz |
| Dimensions | |
| Height | 51mm |
| Length | 230mm |
| Width | 70mm |
| Electrical | |
| Input Voltage | 12-24V |
| Maximum Wattage | 480W |
| Voltage | 24V |
| General | |
| Construction | Plastic |
| IP Rating | IP54 |
Technical drawings
Downloads
Spec sheets
Catalogues
Common questions
Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
