WiseRetro Radio Module Bronze WiseRetro Radio Module Bronze WiseRetro Radio Module Bronze WiseRetro Radio Module Bronze

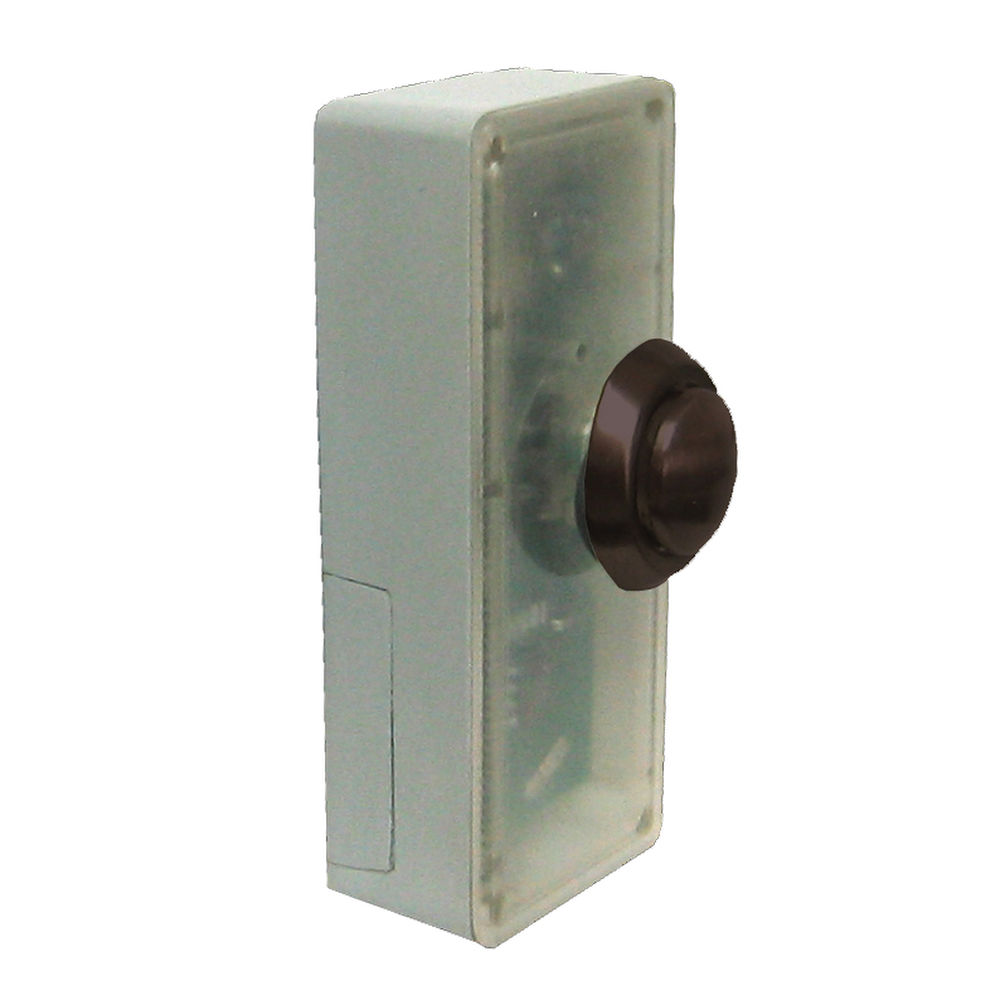

WiseRetro Radio Module Bronze

Product code WISEFL17 BMA
£14.00 ex. VAT
The WiseRetro Radio Module is a single channel radio module that can be programmed to any of the circuits on the Wise receivers. It has been designed to fit onto any standard dimmer plate from 1 gang to 24 gang. The retro radio module has a locking nut that screws onto the front of the dimmer plate. 32 retro radio modules can be added to each Wise receiver providing ultimate flexibility.

When the button is pressed a red light will glow from the behind the switch button. This is the battery indicator.

The battery life lasts up to 3 years.

A 25mm backbox is required for this switch.

Wise Controls Introduction Video

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Radio Frequency 868.3 MHz
Dimensions
Depth 15mm
Height 58mm
Width 24mm
Electrical
Replacement Battery CR2032
Voltage 3V
General
Colour Bronze
Construction Plastic
IP Rating IP20

Downloads

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
