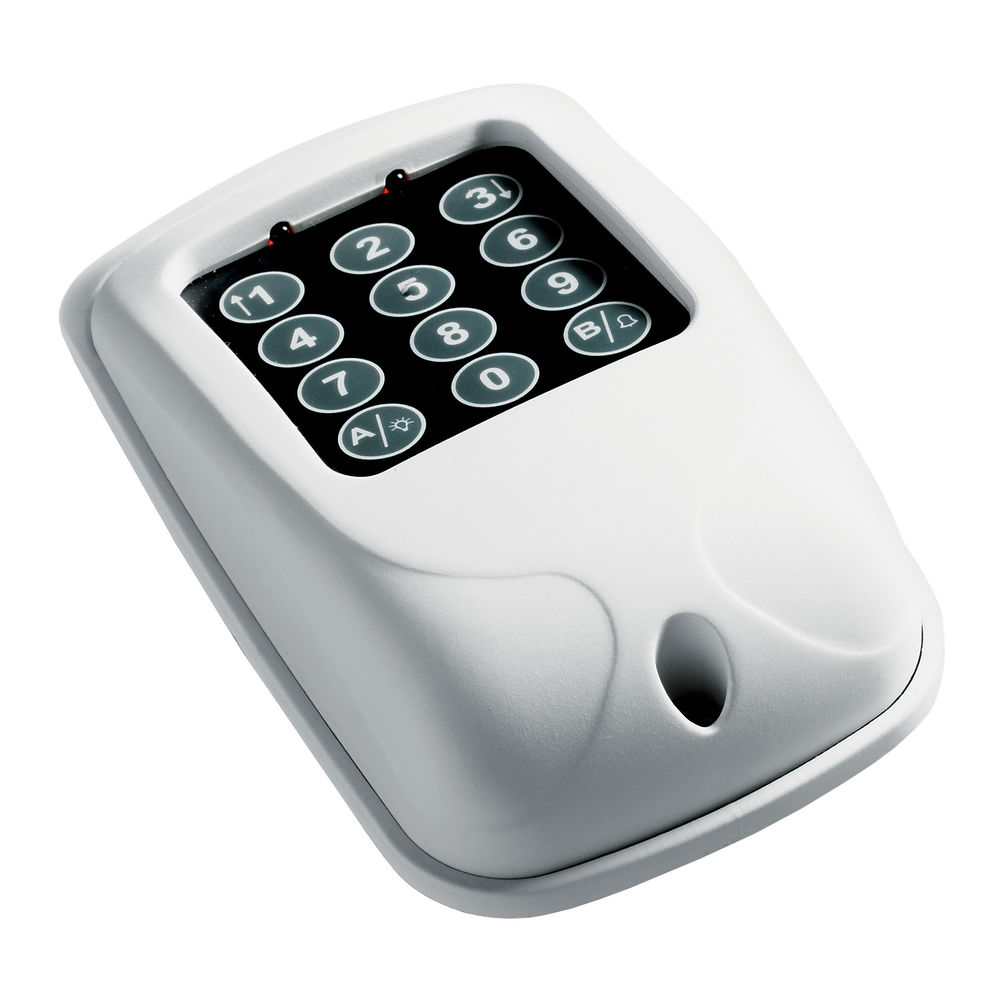

Wise Keypad Switch 4 Channel White

Wise Keypad Switch 4 Channel White

Product code WISE KEYPAD WHT
£106.94 ex. VAT
The Wise Keypad Switch is a coded remote control that activates your wireless switching/dimming controllers for security purposes or where limiting access to lighting controls is a requirement. This product has a waterproof rating of IP54, suitable for locating the switch outdoors.

There are a total of 4 channels, 3 of which are encoded. Transmission commands may only be activated after an access code of 5 digits is entered between the numbers 0 to 9. If the entered access code is correct, the 3 encoded channels are unlocked and can be pressed singly. The encoded channels remain active for 30 seconds after initial code entry. The initial code is easily achieved through the simple programmable interface.

The system permits up to 3 attempts, after which the switch becomes inactive and the internal buzzer emits 3 beeps upon an attempt to press any key. The unit will then have to be enabled again by pressing any key and entering the correct code. This security feature makes this product very difficult to circumnavigate.

Key Functions

  • Keys from 0 to 9 for inserting access code
  • Keys 1-3 Button A: Transmission channels only available after having digitised the access code on the keypad
  • Button B: Direct command, always active, to be used where the command with access code need not be enabled

Wise Controls Introduction Video

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Dimensions
Depth 30mm
Height 115mm
Width 75mm
General
Colour White
IP Rating IP54

Downloads

Manuals & instructions

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
