Wise Scene Dimming or Switching Receiver 0/1-10V 800W Wise Scene Dimming or Switching Receiver 0/1-10V 800W Wise Scene Dimming or Switching Receiver 0/1-10V 800W Wise Scene Dimming or Switching Receiver 0/1-10V 800W Wise Scene Dimming or Switching Receiver 0/1-10V 800W

Wise Scene Dimming or Switching Receiver 0/1-10V 800W

Product code WISESCENE V20-10
£87.57 ex. VAT
The Wise Scene 0/1-10V Receiver is a 800W 0/1-10V dimmer that is controlled by wireless switches or by a push-to-make switch. It can dim Fluorescent and LED by 0/1-10V. It can be programmed in 4 different ways using our wireless switches:

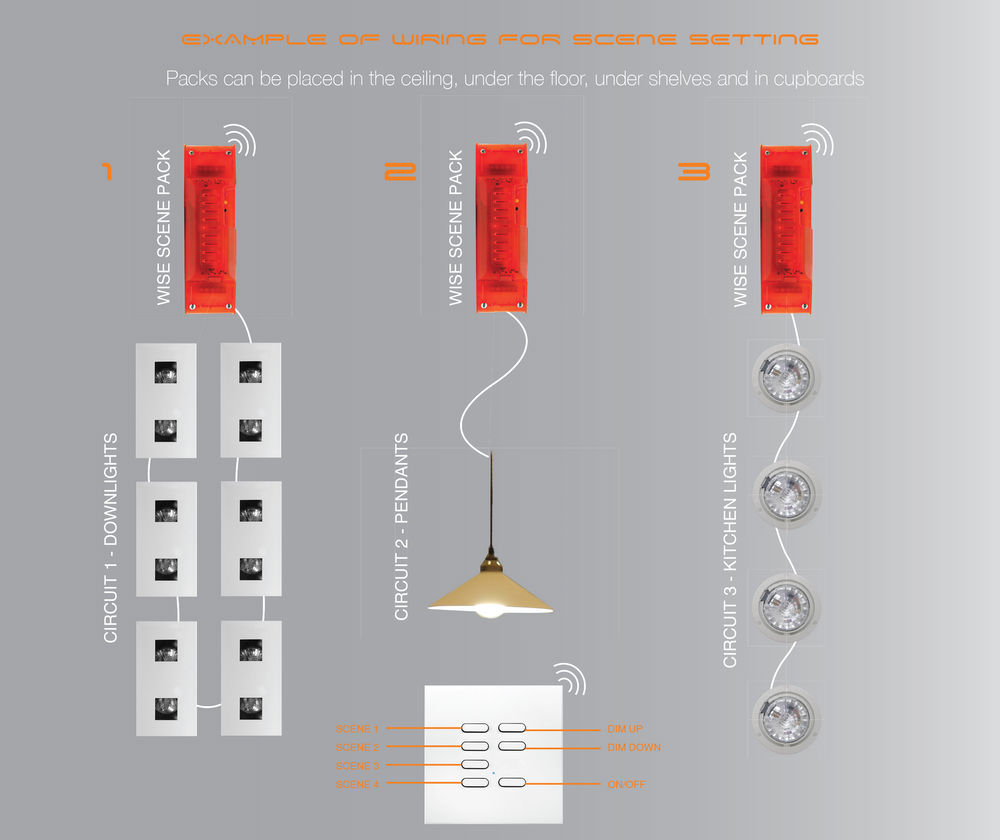

Option A - Scene Programming

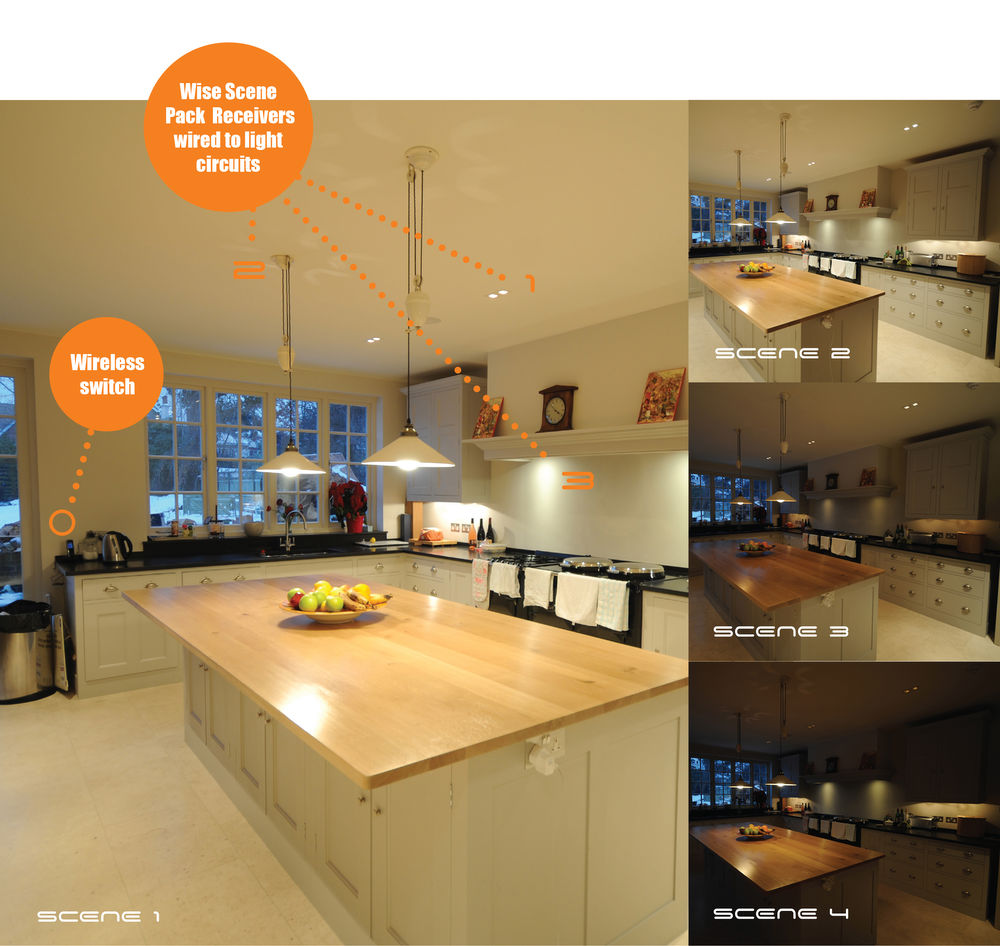

Programming a 7 button switch gives you 4 scenes, master raise/lower and off. A scene is a preset level of light for each circuit in a room. For example, you can have 4 receivers in your living room. Pressing scene 1 on the 7 button switch could give the following;
Downlights = 100%
Wall lights = 80%
Pendant = Off
Low level LEDs = 55%
Pressing scenes 2,3 and 4 can give other preset levels. Any level can be programmed to each receiver.

Option B - Dimming Programming
Programming a 1 button switch gives you on/off with a quick press and dimming up and down while holding the switch. When turning the lights on you can choose to always bring on the lights at 100% or the last dimmed level.

Option C - Switching ON only
Programming a 1 button switch gives you only ON. This function is used to program multiple circuits to ON.

Option D - Switching OFF only
Programming a 1 button switch gives you only OFF. This function is used to program multiple circuits to OFF.

A receiver is not limited to one of the programming options. E.g. you can program a switch for scene control, another switch for dimming and another switch for master ON/OFF.

Wireless Switches and Remotes
A 7 button switch must be used if you require scene setting, Option A. Any button switch can be used when programming options B,C and D. To view other switches click the links on the right of this page, for example Wireless ID switches.

A wired push-to-make switch will work as a dimmer, Option B.

A Wise Scene Receiver is required for every circuit.

Wise Controls Introduction Video

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Maximum Addresses 20
Maximum Scenes Per Receiver 64
Maximum Switches Per Receiver 16
Minimum Spacing Between Receivers 200mm
Radio Frequency 868.3 MHz
Range for Metal Switch 50m Max line of sight (subject to installation)
Range for Plastic Switch 100m Max line of sight (subject to installation)
Dimensions
Height 35mm
Length 165mm
Width 47mm
Electrical
Input Voltage 240V
Maximum Wattage 800W
Minimum Wattage 1W
Output Voltage 240V + 0/1-10V
General
Construction Plastic
IP Rating IP20

Downloads

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
