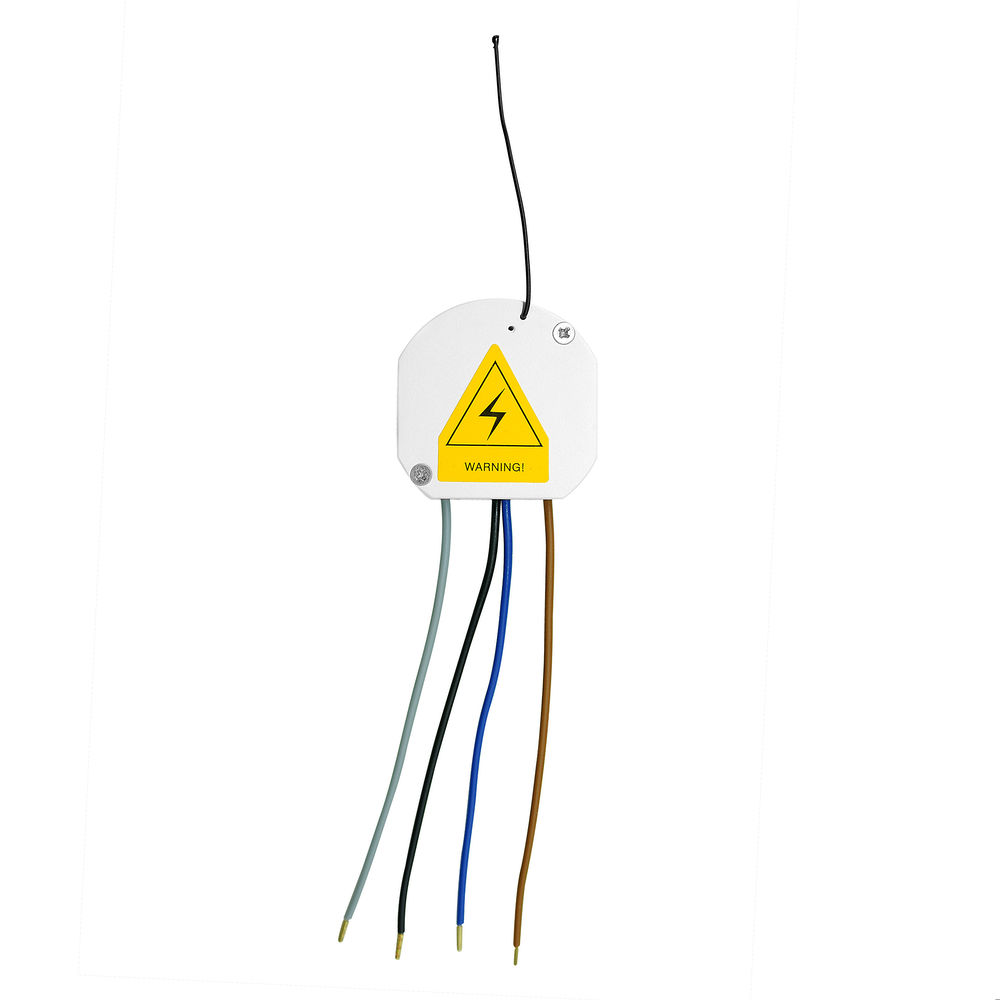

Wise Volt Free Receiver 1 Channel
Product code WISEREC1CH VFREE
£64.38
ex. VAT
The Wise Volt Free Receiver can turn on/off any volt free circuit including; blinds, gates, floodlights, pumps, shutters, contactors, under floor heating, boilers and garage doors.
The receiver is small enough to be placed in many locations, for example, in the ceiling, in the wall either through it, behind a recessed light fitting or in a surfaced mounted fitting. The receiver should be placed in a suitable insulated box.
It can be fitted into a small waterproof box to allowed it to be used outside for your garden lighting, garage doors and water features.
The receivers are designed to be simple to install, easy to use and most importantly, reliable. Any of the Wise 868 switches can be used with this receiver, including the remotes and modules.
It can be programmed in 3 different ways using our wireless switches:
- Option A : Single Button Switching ON/OFF - The circuit can be turned ON/OFF from a single button.
- Option B : Two Button Switching ON/OFF - The circuit can be turned ON/OFF from two buttons, for independent ON and OFF.
- Option C : Mode - Change from ON/OFF to push-to-make.
Wise Controls Introduction Video
- Wireless platform — no rewiring between switches and receivers
- Programmed by button-press — no software, hub or app required to set up
- Free installer training and UK technical support from the Wandsworth team
Free training available for installers — book a slot.
Specifications
| Radio Frequency | 868.3 MHz |
| Range for Metal Switch | 50m Max Line Of Sight |
| Range for Plastic Switch | 100m Max Line Of Sight |
| Dimensions | |
| Depth | 25mm |
| Height | 50mm |
| Width | 50mm |
| Electrical | |
| Input Voltage | 240V |
| Output Voltage | 0V |
| General | |
| Colour | White |
| Construction | Plastic |
| IP Rating | IP20 |
Downloads
Spec sheets
Catalogues
Common questions
Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
