Wise DIN Rail DMX/DALI 12V/24V DMX/DALI 300W Wise DIN Rail DMX/DALI 12V/24V DMX/DALI 300W Wise DIN Rail DMX/DALI 12V/24V DMX/DALI 300W Wise DIN Rail DMX/DALI 12V/24V DMX/DALI 300W

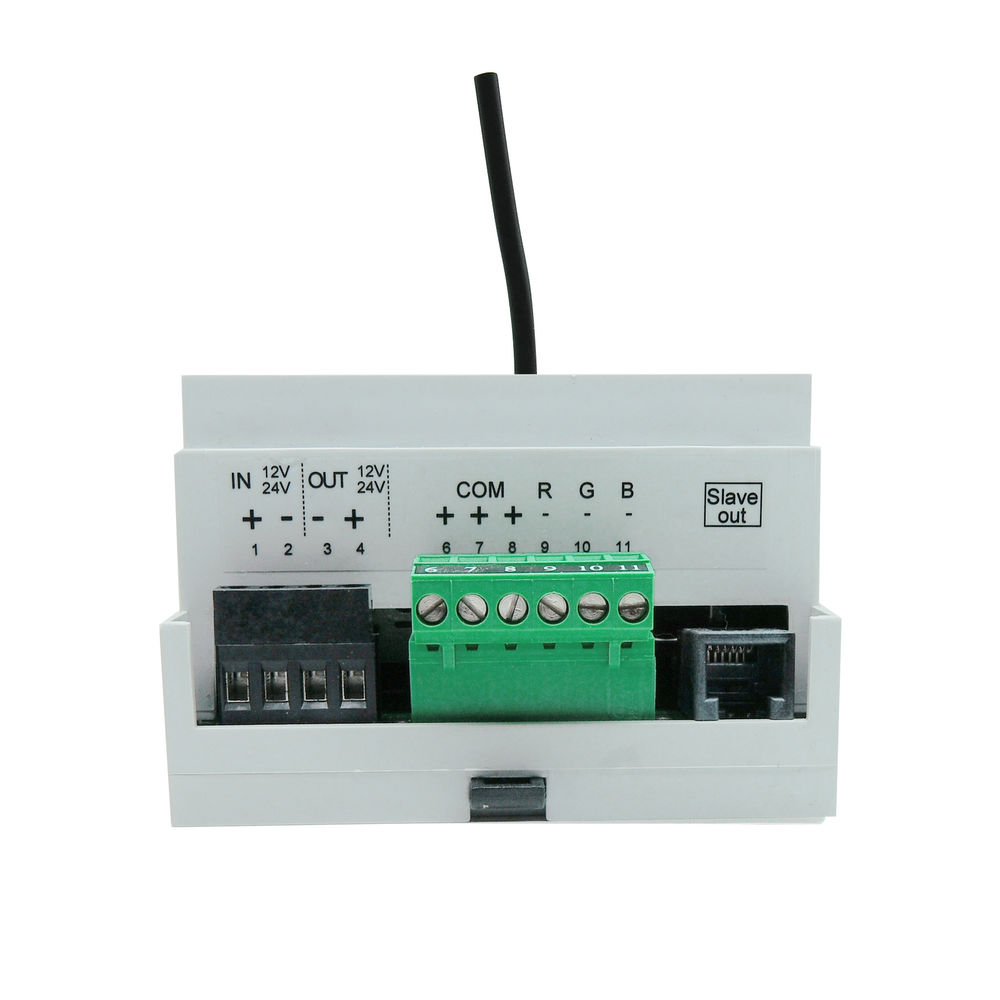

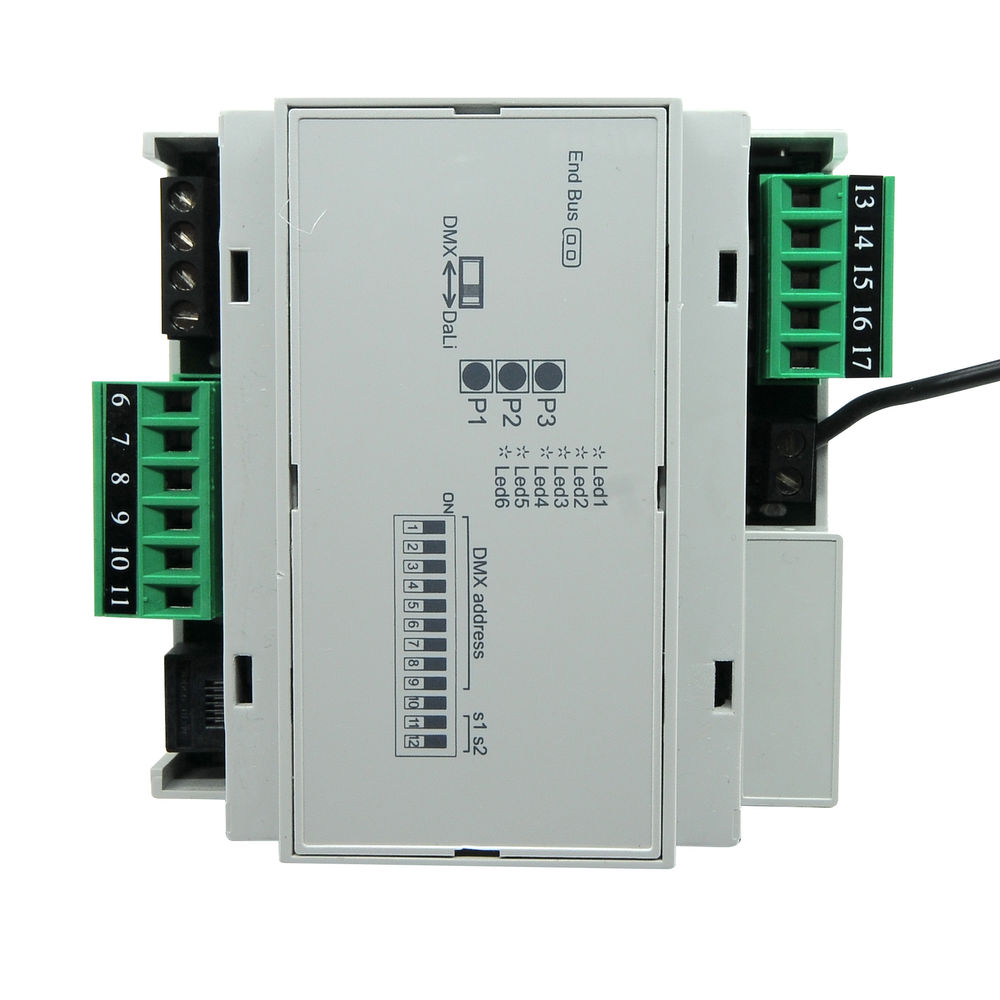

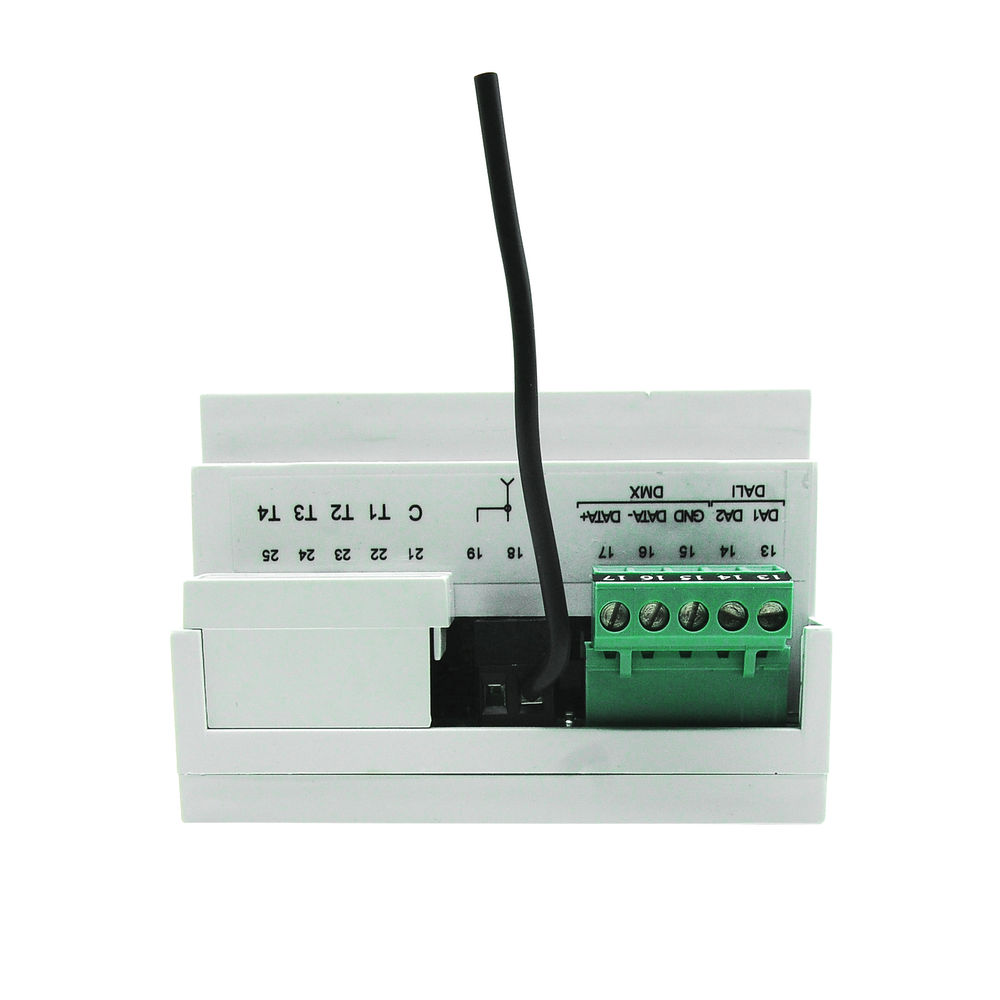

Wise DIN Rail DMX/DALI 12V/24V DMX/DALI 300W

Product code WISERAILDMXSTRIP
£162.23 ex. VAT

The Wise Rail DMX/DALI 12V/24V is a dinrail mounted colour changing receiver for use with our extensive range of Wise transmitters. The system can be powered by either 12V or 24V and will work with a range of RGB fittings up to a maximum loading of 150W at 12V, or 300W at 24V.

The DMX/DALI Interface brings Wise Controllers together. You can now control the Wise Chameleon from either your DMX/DALI control system or your Wise wireless switches, giving you the benefits of both DMX/DALI wired and Wise wireless controlling.

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Radio Frequency 868.3 MHz
Dimensions
Depth 60mm
Length 90mm
Width 90mm
Electrical
Input Voltage 12V / 24V
Maximum Wattage 300W
General
Construction Plastic

Downloads

Manuals & instructions

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
