Wise DIN Rail RGBW DMX/DALI Interface RGBW DMX/DALI 300W Wise DIN Rail RGBW DMX/DALI Interface RGBW DMX/DALI 300W Wise DIN Rail RGBW DMX/DALI Interface RGBW DMX/DALI 300W

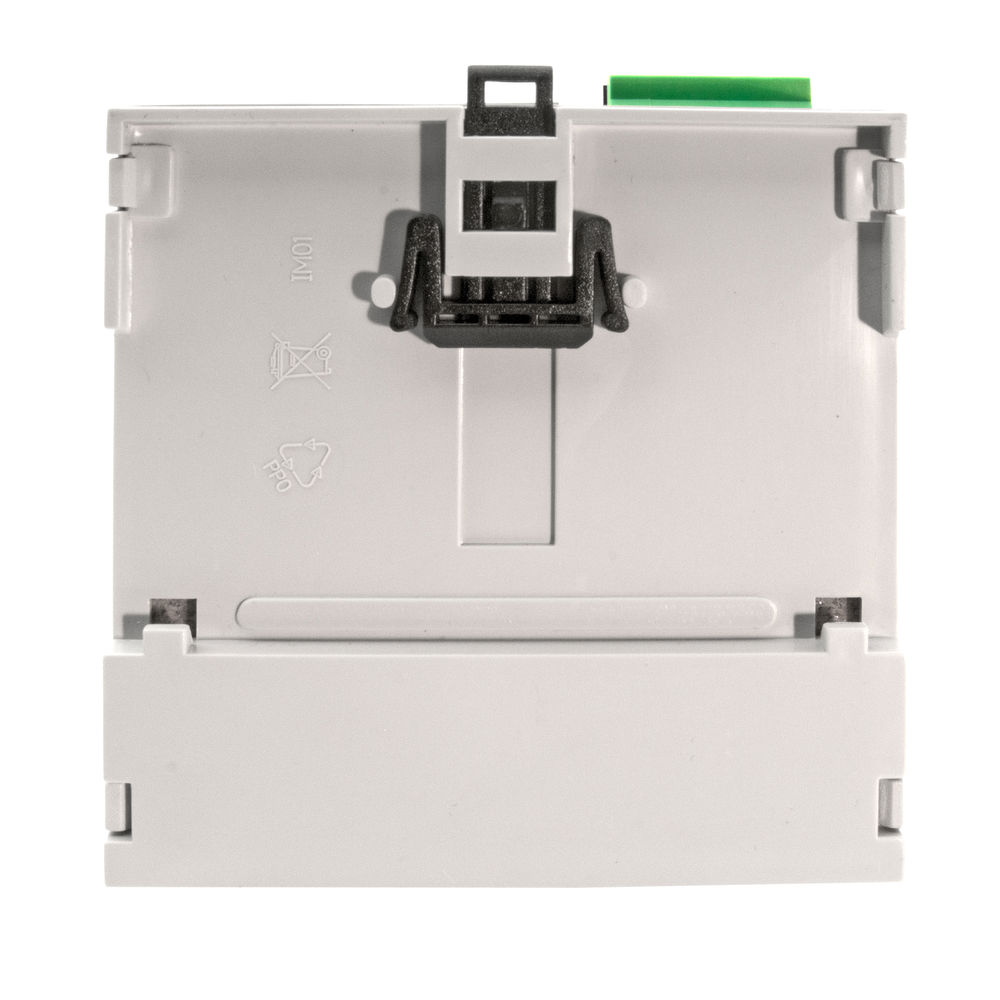

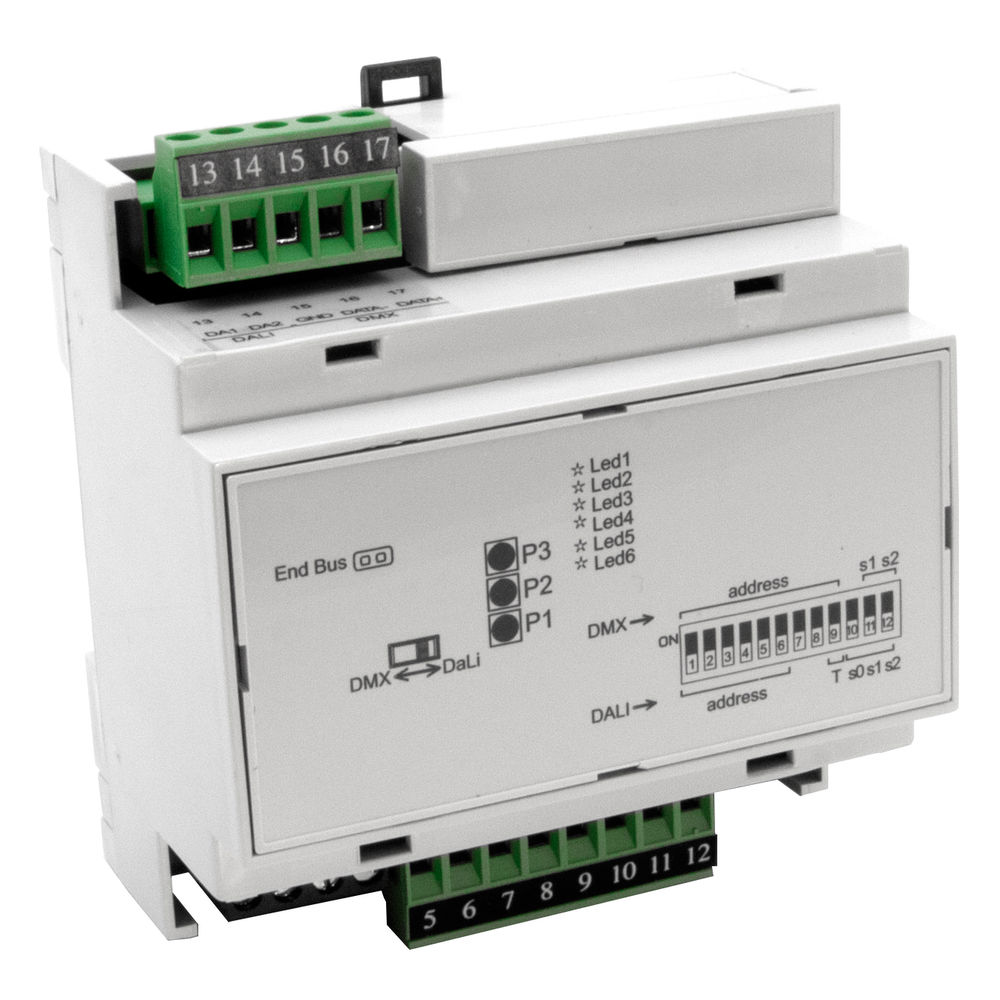

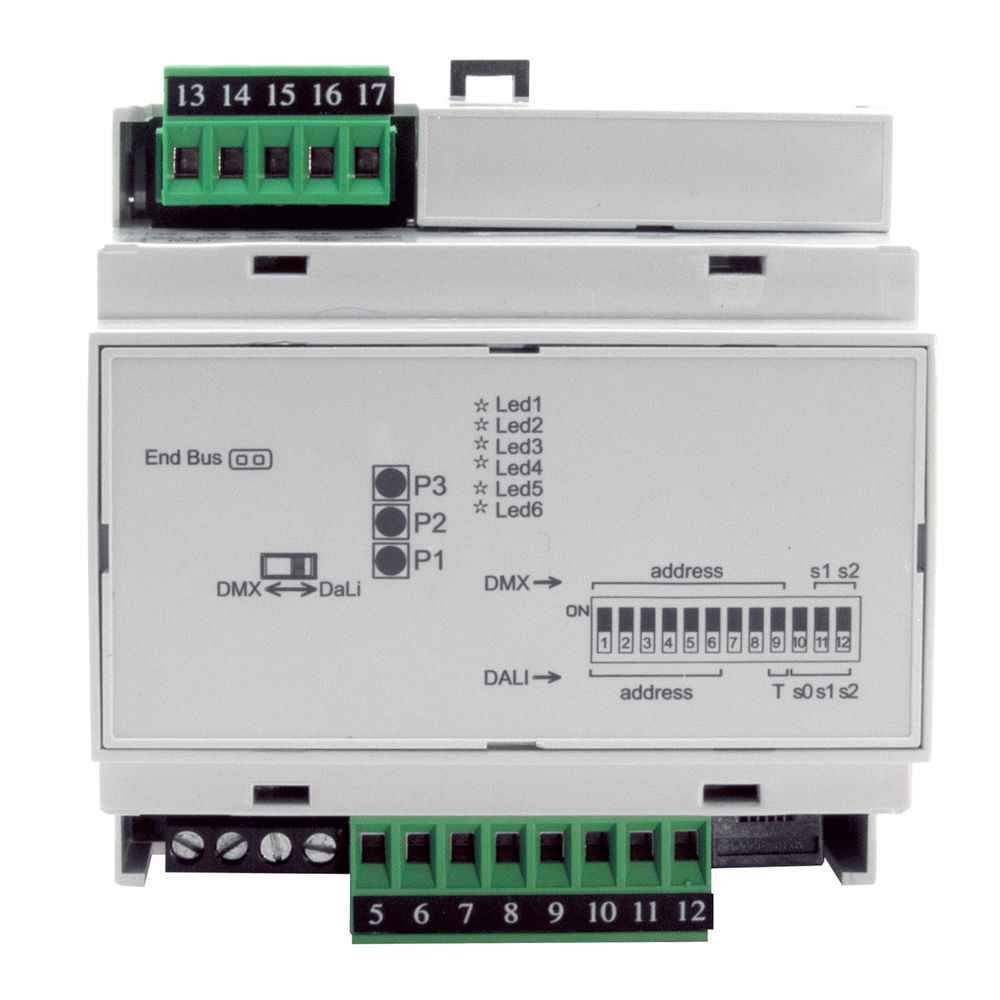

Wise DIN Rail RGBW DMX/DALI Interface RGBW DMX/DALI 300W

Product code WISERAIL RGBW
£129.78 ex. VAT

The Wise Rail RGBW DMX/DALI Interface brings Wise Controllers together. You can now control the Wise Chameleon from either your DMX/DALI control system or your Wise wireless switches, giving you the benefits of both DMX/DALI wired and Wise wireless controlling.

If the input voltage is 12V then the maximum wattage will be 150W as the Wise Rail is 37.5W per channel. If the input wattage is 24V then the maximum wattage will be 300W as the Wise Rail is 75W per channel.

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Radio Frequency 868.3 MHz
Dimensions
Depth 58mm
Height 90mm
Width 88mm
Electrical
Input Voltage 12V / 24V
Maximum Wattage 300W
General
Construction Plastic

Downloads

Manuals & instructions

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
