Wise Box 2 Channel kit includes Keyfob, Keypad & Dusk to Dawn 2 Channel 2 x 1000W Wise Box 2 Channel kit includes Keyfob, Keypad & Dusk to Dawn 2 Channel 2 x 1000W Wise Box 2 Channel kit includes Keyfob, Keypad & Dusk to Dawn 2 Channel 2 x 1000W

Wise Box 2 Channel kit includes Keyfob, Keypad & Dusk to Dawn 2 Channel 2 x 1000W

Product code WISEBOX2CHDK/DN
£209.18 ex. VAT

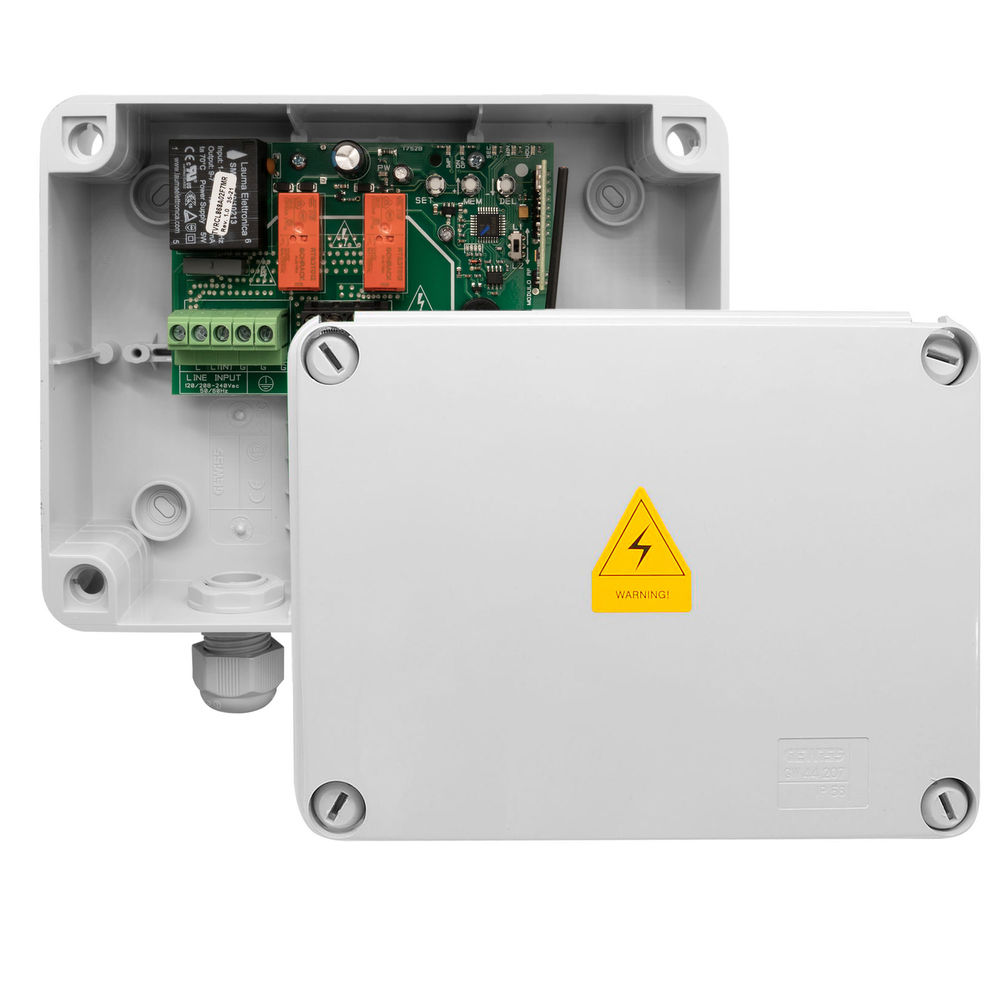

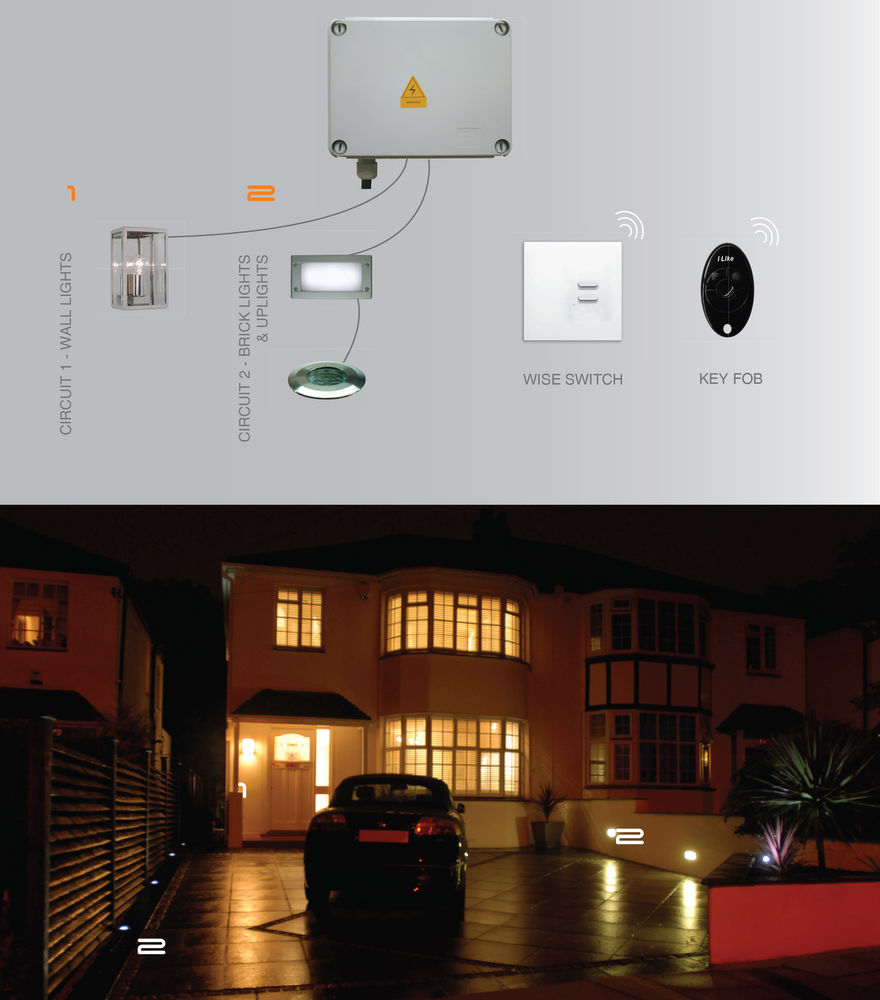

The Wise Time Lag Box Kit is a receiver that has three functions. The functions are on/off switching, push-to-make switching and timelag switching. The timelag function can be set to work between 1 second and 9 hours. This is very popular when installing lighting for communal hall ways and stair cases. As the switches are all wireless they can be placed anywhere with minimal effort.

The receiver has two 10 amp channels with a 200 metre range. Thee channels can be changed from switching to push-to-make.

It can be programmed in 4 different ways:

Option A - Push-to-make
The circuit will work as push-to-make from a single button.

Option B - Single Button Switching ON/OFF
The circuit can be turned ON/OFF from a single button.

Option C - Two Button Switching ON/OFF
The circuit can be turned ON/OFF from two buttons, for independent ON and OFF.

Option D - Time Delay
The circuit can have a timer on it. Use a single button to turn the lights on. The timer will turn the circuit off after the set time has passed. Use a two button switch for control. To turn on, press button 1 and either wait for the dela time or press button 2 to turn off.

Wall-mounted radio transmitter with integrated light sensor with dusk/dawn function. Automatic control of lights, loads and automation with dusk/dawn function.

Wise Controls Introduction Video

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Detection Range 200m
Dimensions
Depth 80mm
Height 184mm
Width 200mm
Electrical
Amperage 20A
Maximum Amps / Circuit 10A
Minimum Wattage per Circuit 1W
Voltage 240V
General
IP Rating IP54

Downloads

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
