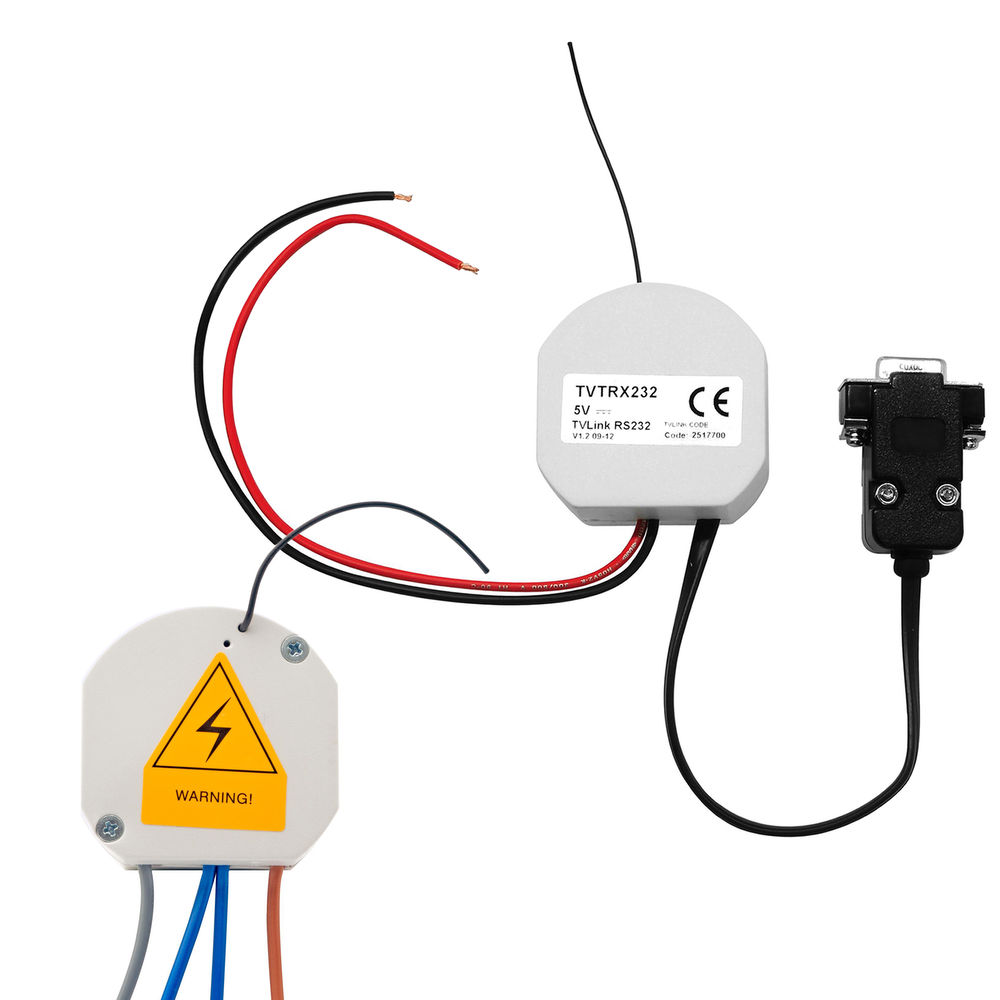

Wise RS232 Interface Control 4 & Wise Switch Receiver 240V 5V White Wise RS232 Interface Control 4 & Wise Switch Receiver 240V 5V White

Wise RS232 Interface Control 4 & Wise Switch Receiver 240V 5V White

Product code WISE RS232 1CH 3000 KIT
£269.66 ex. VAT

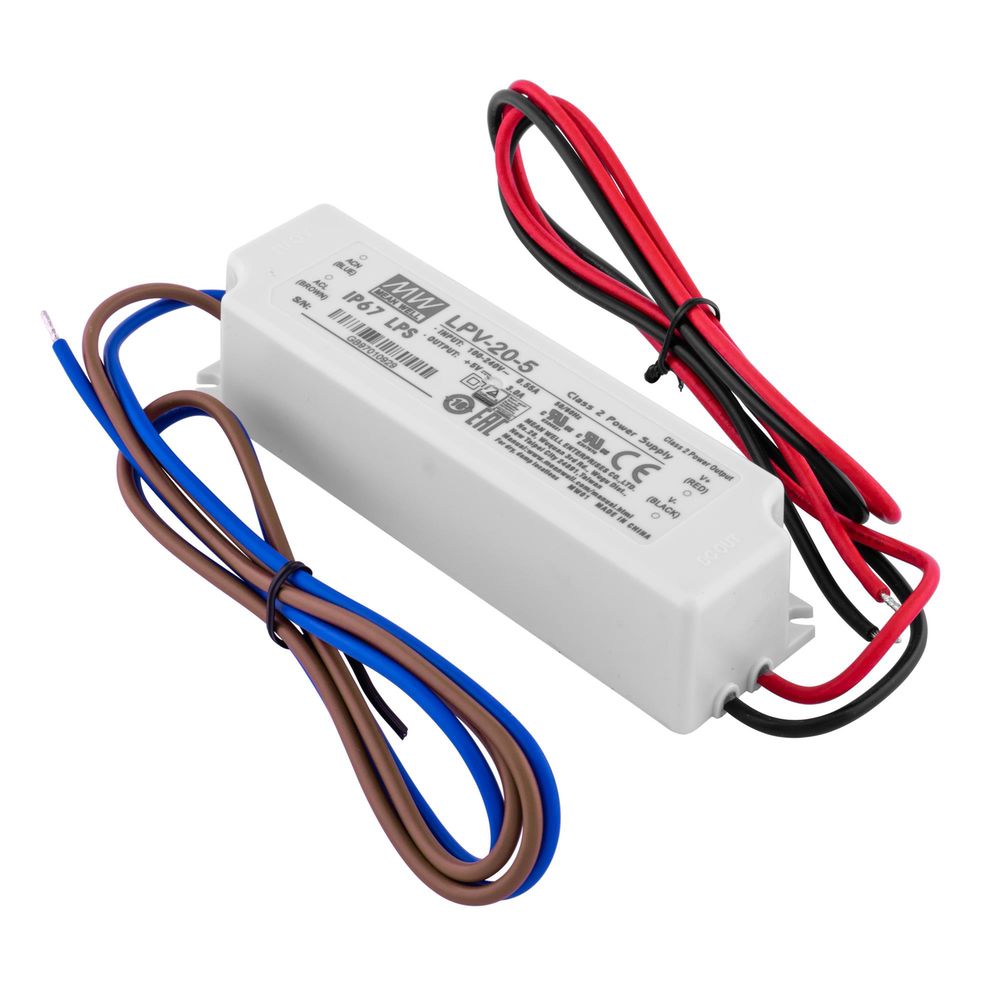

This kit consists of a; Wise RS232 Interface, Wise Switch Receiver 240V & Wise LPV-20-5 Interface 5V

The Wise Switch Receiver is a single circuit switching unit rated at 1000 watts. It cannot be dimmed.

The receiver is small enough to be placed in many locations, for example, in the ceiling through a downlighter hole, in the wall either through it, behind a recessed light fitting or in a surfaced mounted fitting. The receiver should be placed in a suitable insulated box.

It can be fitted into a small waterproof box to allowed it to be used outside for your garden lighting, garage doors and water features.

The receivers are designed to be simple to install, easy to use and most importantly, reliable. Any of the Wise 868 switches can be used with this receiver, including the remotes and modules. This receiver can also be used in conjunction with the other Wise receivers.

The Wise RS232 Interface is used as a way of communicating between the wise controls system and other AV equipment.

Works with:

  • Wise Recievers
  • Control 4
  • Creston
  • Lutron
  • Mode
  • RTI

Software drivers are available from Janus Technology. Please go to the link below to download them

http://janustechnology.co.uk/product-category/drivers/manufacturer/drivers-manufacturer-wise-controls/
  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Band Rate 19200
Dimensions
Cable Length 1700mm
Depth 25mm
Height 50mm
Width 50mm
General
Colour White

Downloads

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
