Wise Box One Override PIR Sensor Kit 1 Channel, 16 Amps Wise Box One Override PIR Sensor Kit 1 Channel, 16 Amps

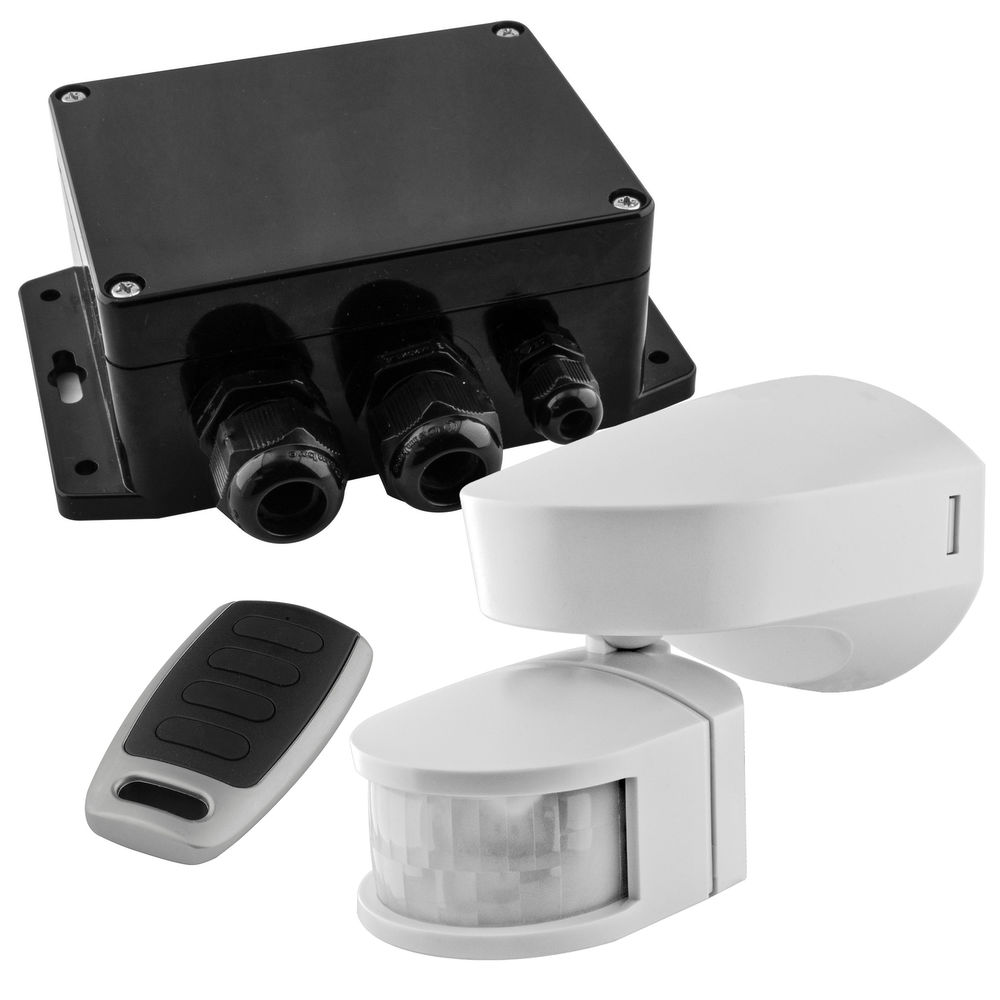

Wise Box One Override PIR Sensor Kit 1 Channel, 16 Amps

Product code WISEBOX 1CH PIR WH
£143.80 ex. VAT

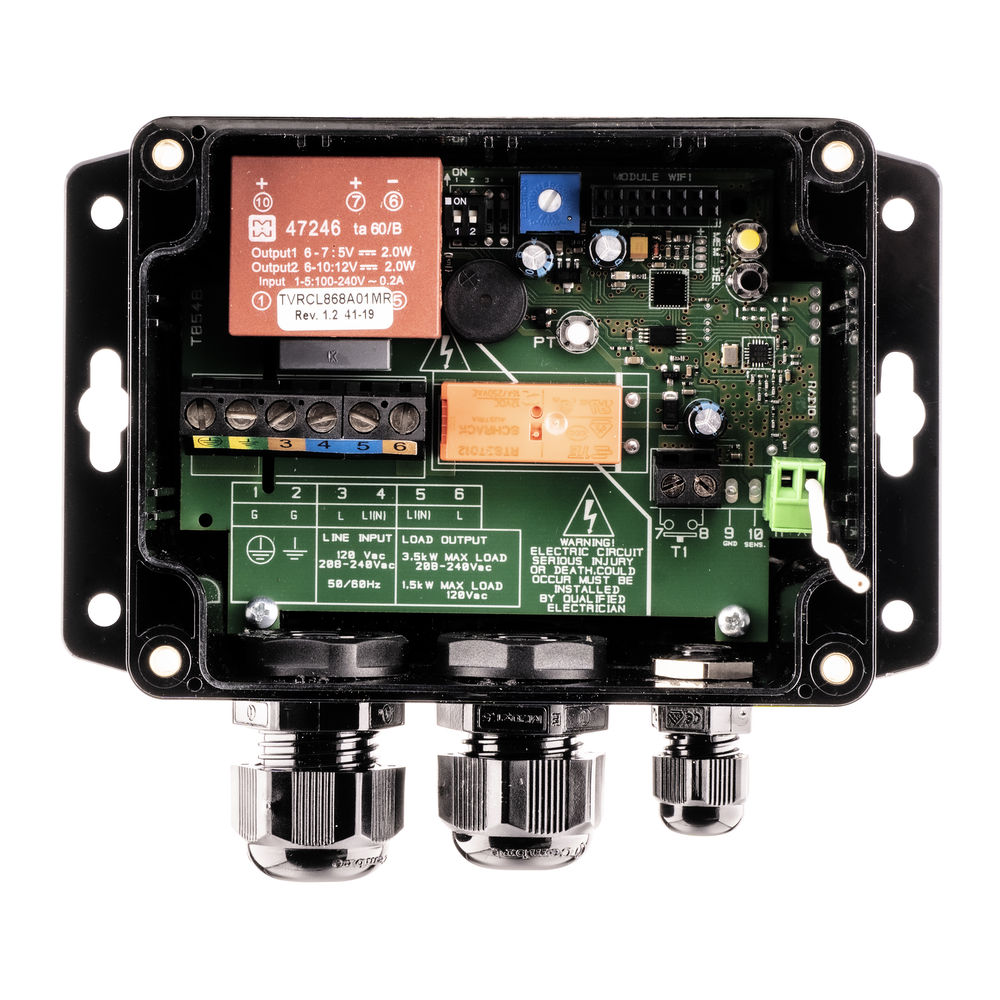

The Wise Box One is a one channel receiver that is controlled wirelessly. We have developed the Wise Box One Channel to place at multiple locations in one garden. The box is small, weatherproof, easy to mount and black, to blend into surroundings. The Wise Box One has advanced software for more flexible programming.

The Wise box unit will control your lights, water features, electric shutters and gates etc. Once programmed, place the indoor wireless switch in a suitable location and the installation is complete. Enjoy switching your circuits from anywhere in your garden or home with the remote control.

180° PIR 2300W PIR Light Controller

When the Wisebox is turned off the PIR sensor works as normal. When the Wisebox is turned on, the sensor is overridden, and the lights will stay on.

Manual Override

  • The light can be switched ON for longer time periods by use of the Manual Override Mode. This can be activated at night time (only) by using the internal wall switch or circuit breaker. Switch the internal wall switch once (OFF/ON) within 1.5 seconds.
  • The unit will now illuminate continuously for 6 hours or until it is switched back into Auto Mode.
  • To return to Auto Mode, switch the internal wall switch OFF and then back ON again within 1.5 seconds.
  • The unit will now illuminate continuously for 6 hours or until it is switched back into Auto Mode.
  • To return to Auto Mode, switch the internal wall switch OFF and then back ON again within 1.5 seconds.
  • The unit will return to its Auto Mode and will operate as set up after the walk test procedure.

    • Wise Controls Introduction Video

    WiseBox 1CH Programming Tutorial

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Detection Range 200m
Dimensions
Height 55mm
Length 145mm
Width 90mm
Electrical
Amperage 16A
Maximum Amps / Circuit 16
Maximum Wattage 3500W
Voltage 240V
General
Colour White
IP Rating IP56

Technical drawings

Technical drawing for Wise Box One Override PIR Sensor Kit 1 Channel, 16 Amps

Downloads

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
