Wired PIR Flush Mounted Occupancy Switch 240V 2 Channel Wired PIR Flush Mounted Occupancy Switch 240V 2 Channel

Wired PIR Flush Mounted Occupancy Switch 240V 2 Channel

Product code WISE CEFLPIR
£113.00 ex. VAT

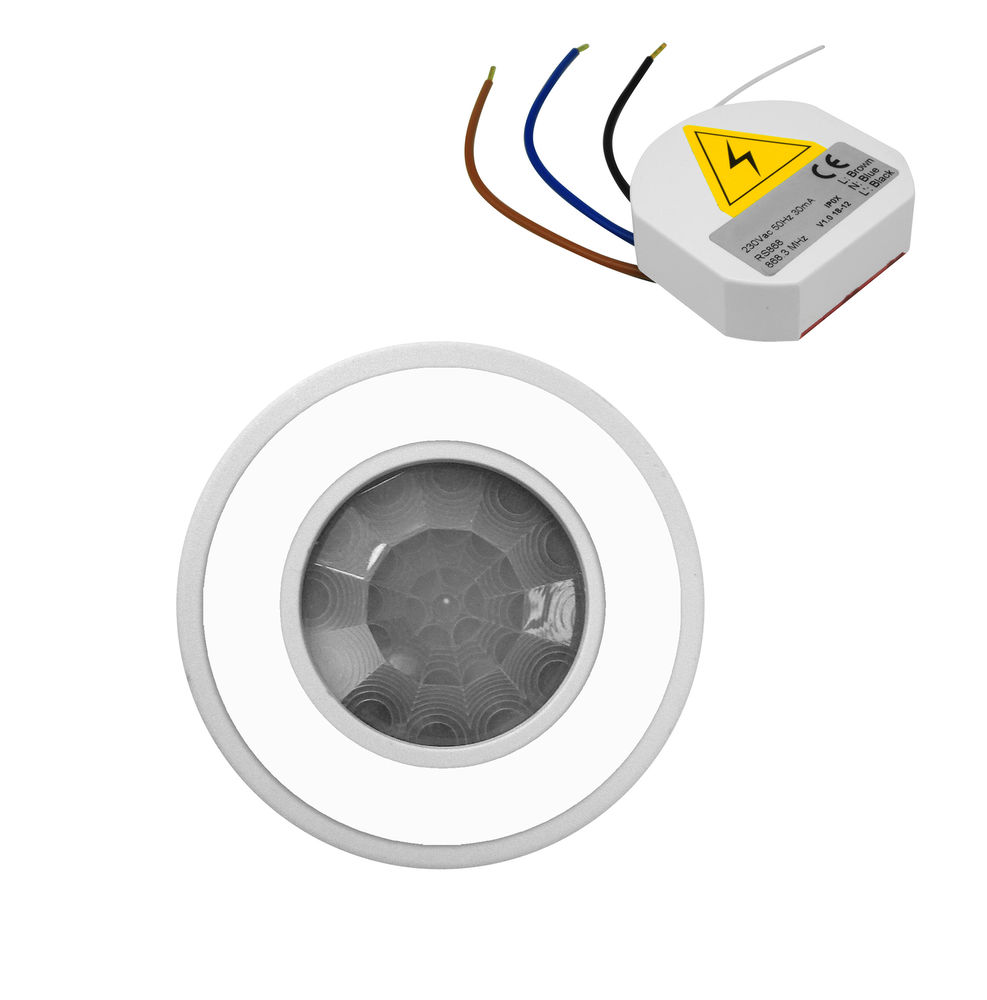

The Wired PIR Sensor Kit 240V is a Wise Transmitter with a wired PIR Flush Mounted Occupancy Switch. The Wise Transmitter enables the PIR to send wireless signals to any Wise Receiver. Ideal for when you cannot install any cables between your sensor and your lighting circuit.

The transmitter is small enough to be placed in many locations, for example, in the ceiling, in the wall either through it, behind a recessed light fitting or in a surfaced mounted fitting. The transmitter should be placed in a suitable insulated box.

It can be fitted into a small waterproof box to allowed it to be used outside for your garden lighting, garage doors and water features.

The transmitters are designed to be simple to install, easy to use and most importantly, reliable.

Wise Controls Introduction Video

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Detection Angle 360°
Detection Range 5m
Photocell Range 100 to 1000 lux
Time Delay 10 secs to 40 mins
Dimensions
Cable Length 2m
Cut Out 64mm (Diameter)
Diameter 72mm
Electrical
Amperage 6A
Input Voltage 240V
Output Voltage 240V
General
Colour White
Construction Plastic
IP Rating IP44

Downloads

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
