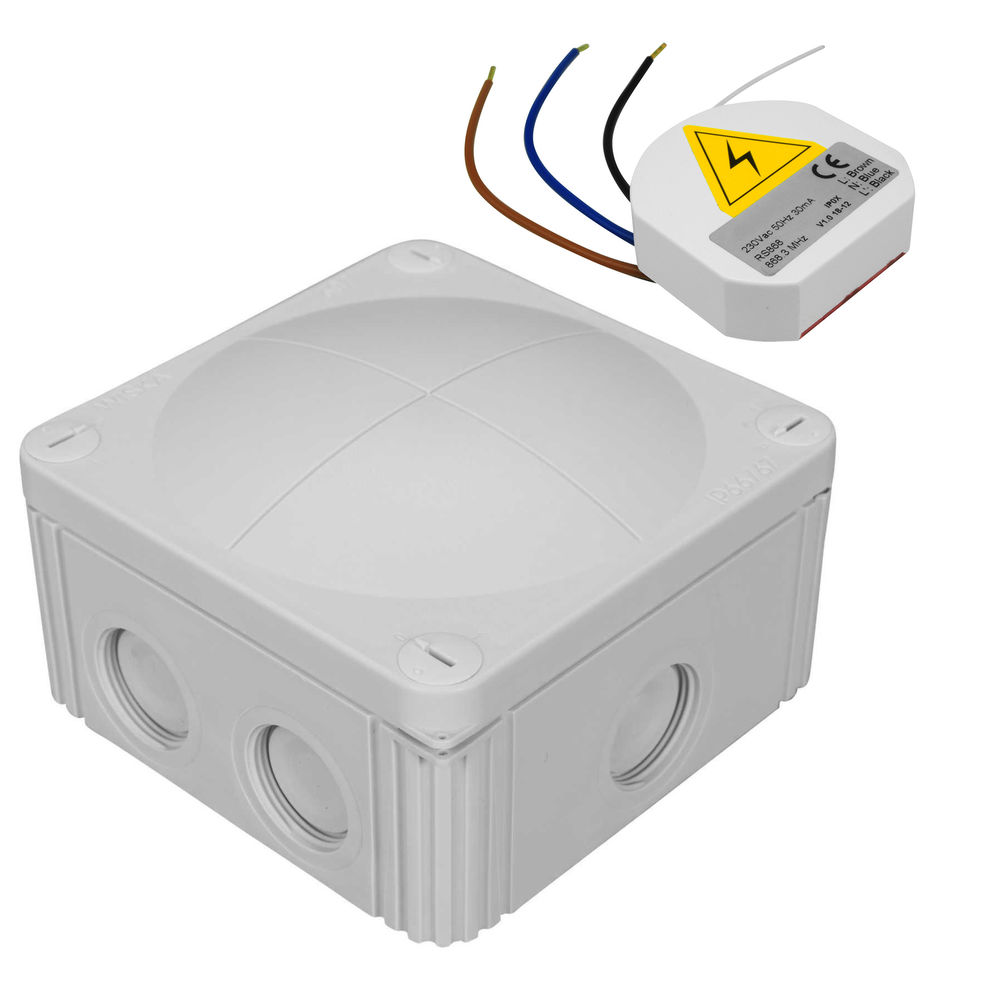

Wired Microwave Presence Detection Switch Kit 240V White 500w

Wired Microwave Presence Detection Switch Kit 240V White 500w

Product code WISE MW2AIP67
£156.21 ex. VAT
The Wired Microwave Presence Detection Switch Kit 240V is a Wise Transmitter with a wired Microwave Presence Detection Switch. The Wise Transmitter enables the Sensor to send wireless signals to any Wise Receiver. Ideal for when you cannot install any cables between your sensor and your lighting circuit.

The transmitter is small enough to be placed in many locations, for example, in the ceiling, in the wall either through it, behind a recessed light fitting or in a surfaced mounted fitting. The transmitter should be placed in a suitable insulated box.

It can be fitted into a small waterproof box to allowed it to be used outside for your garden lighting, garage doors and water features.

The transmitters are designed to be simple to install, easy to use and most importantly, reliable.

Ideal for outdoor or indoor use the 2A Microwave Presence Detection Switch IP67 can be wall or ceiling mounted and are designed for the automatic switching of lighting, heating, and air conditioning loads.

The sensor detects movement, within its range of detection, by emitting low-power microwave signals and measuring the reflections as the signal reflects off moving objects such as people moving through a room.

When movement is detected the load switches ON. If no more movement is detected within a certain time, then the MW2A IP67 will switch the load OFF. The time can be set via the internal dip switches.

Wise Controls Introduction Video

  • Wireless platform — no rewiring between switches and receivers
  • Programmed by button-press — no software, hub or app required to set up
  • Free installer training and UK technical support from the Wandsworth team
Find a stockist Enquire about this product
Free training available for installers — book a slot.

Specifications

Detection Angle 30° - 150°
Detection Range 12m X 6m
Time Delay 5sec (walk test), 30sec, 1min, 5min, 20min, 30min
Dimensions
Height 65mm
Length 110mm
Width 110mm
Electrical
Amperage 2A
Input Voltage 240
Maximum Wattage 500W
Voltage 240V
General
Colour White
IP Rating IP67

Downloads

Common questions

Do I need Wi-Fi for this to work?
No. The Wise platform runs on radio frequency (RF), independent of your home Wi-Fi or broadband. The system continues to function during internet outages.
Is special programming software required?
No software, hub or laptop is needed for standard setup. Pairing is done by pressing buttons on the receiver and transmitter in sequence — any qualified installer or competent homeowner can do it.
Can I add this to an existing Wise installation?
Yes. Any new Wise receiver or transmitter pairs directly with existing kit. There's no version lock — Wise Box receivers, Scene controllers and Fusion dimmers all live on the same RF platform regardless of generation.
Does it need a qualified electrician to install?
Wireless transmitters (keypads, remotes, PIRs) can be installed by a competent person without mains work. Receivers and dimmers wire into the mains supply and must be installed by a qualified electrician. Free training is available — see our training page.
Where can I buy it?
Wise Controls equipment is sold through authorised electrical wholesalers nationwide — see our stockists page for the full list, or contact us for the closest distributor to your project.
